Price (inc. VAT):
£17.30

In Stock: 5
(54 more available in 3-4 days)

Product Code: XY45S.DB

Description:

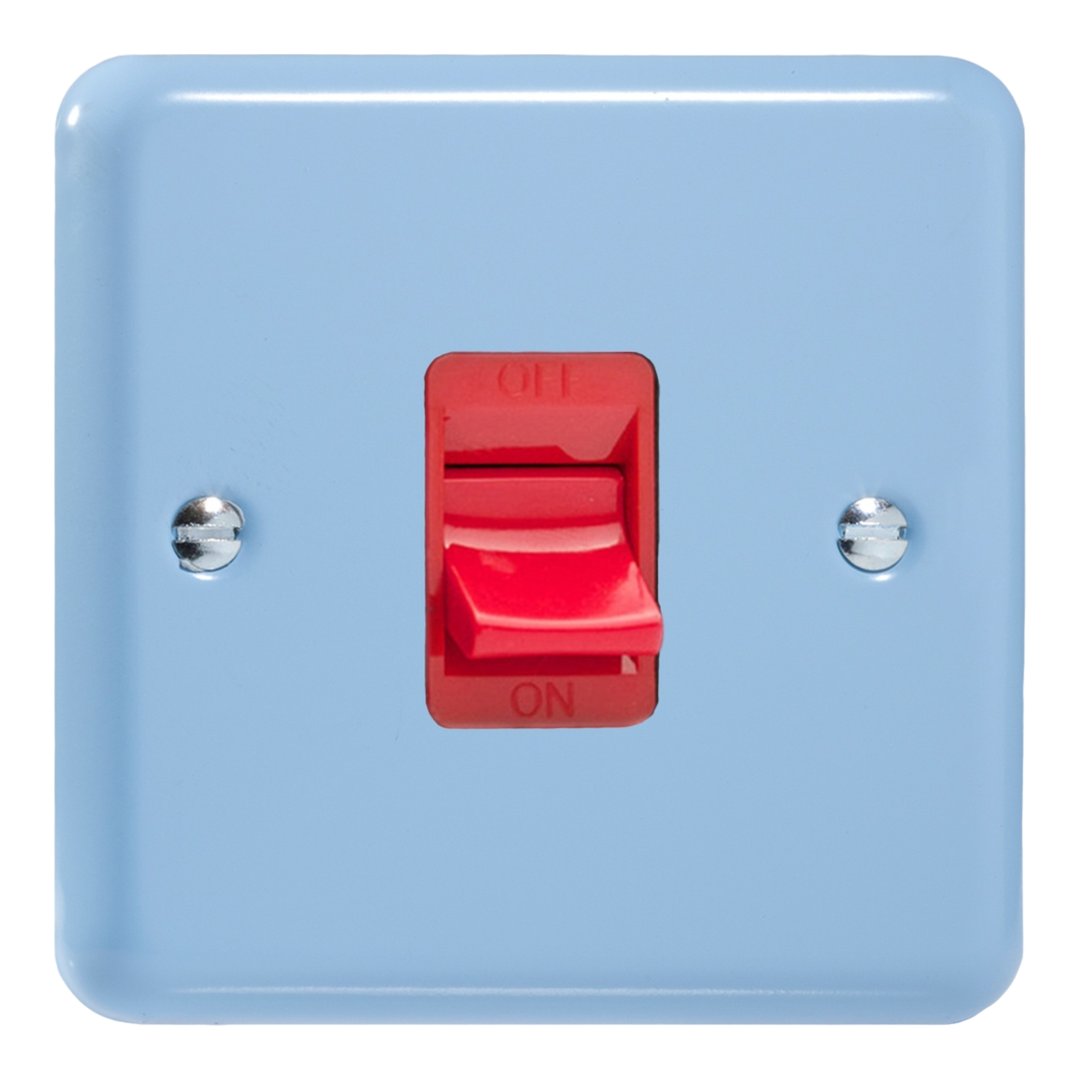

45A Cooker Switch (Single Plate/ Red Rocker)

Range: Lily

Finish: Duck Egg Blue

Product Category: Cooker Switches

Insert/Knob Colour: Red Insert

Barcode: 5021575215397

Dimensions: 86x86x35mm

Faceplate Depth: 7mm

Weight: 178g

Fixing Centres: 60.3mm

Depth from Mounting Face: 19mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Cooker Switch: 45A

Maximum Current Rating: 45A

Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1 Declaration of Conformity

Commodity Code: 85389091
