Product Features:
Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
The neon can be wired as a nightlight to help you find the switch in the dark. Click here for the wiring diagram.
20A rated
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Product Code: XDY20NIDS.PD
Description:

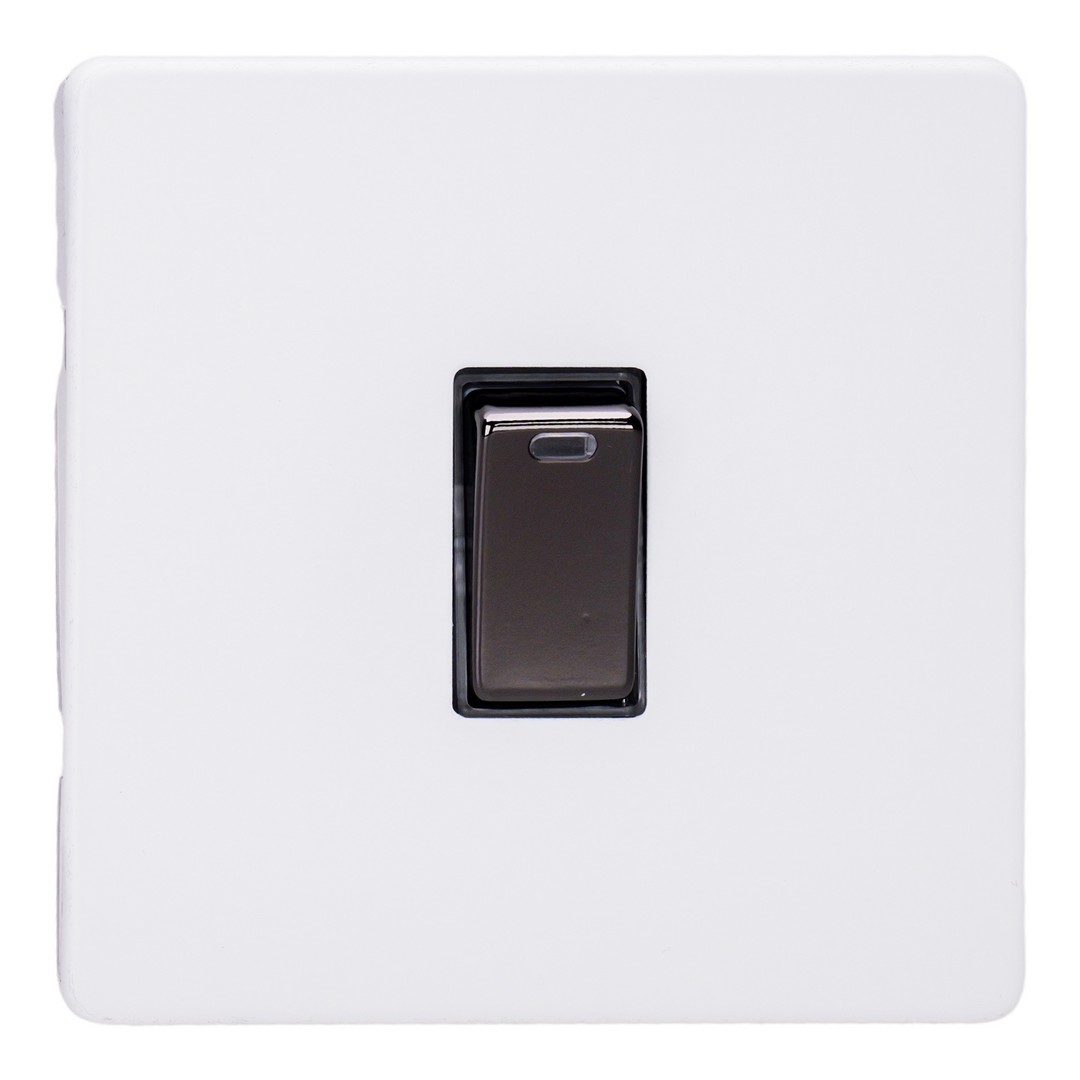

1-Gang 20A Double Pole Rocker Switch with Neon Indicator Light
Range: Screwless
Finish: Primed Paintable
Product Category: Rocker Switches
Insert/Knob Colour: Iridium Rocker
Barcode: 5021575034516
Dimensions: 86x86x30mm
Faceplate Depth: 4mm
Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 22.2mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 20A
Maximum Current Rating: 0A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1 Declaration of Conformity
Commodity Code: 85389091
Code: XDY5IBS.PD
Price (inc. VAT): £9.58
