Price (inc. VAT):
£19.10

In Stock: 22
(28 more available in 3-4 days)

Product Code: XDS6UFODS

Description:

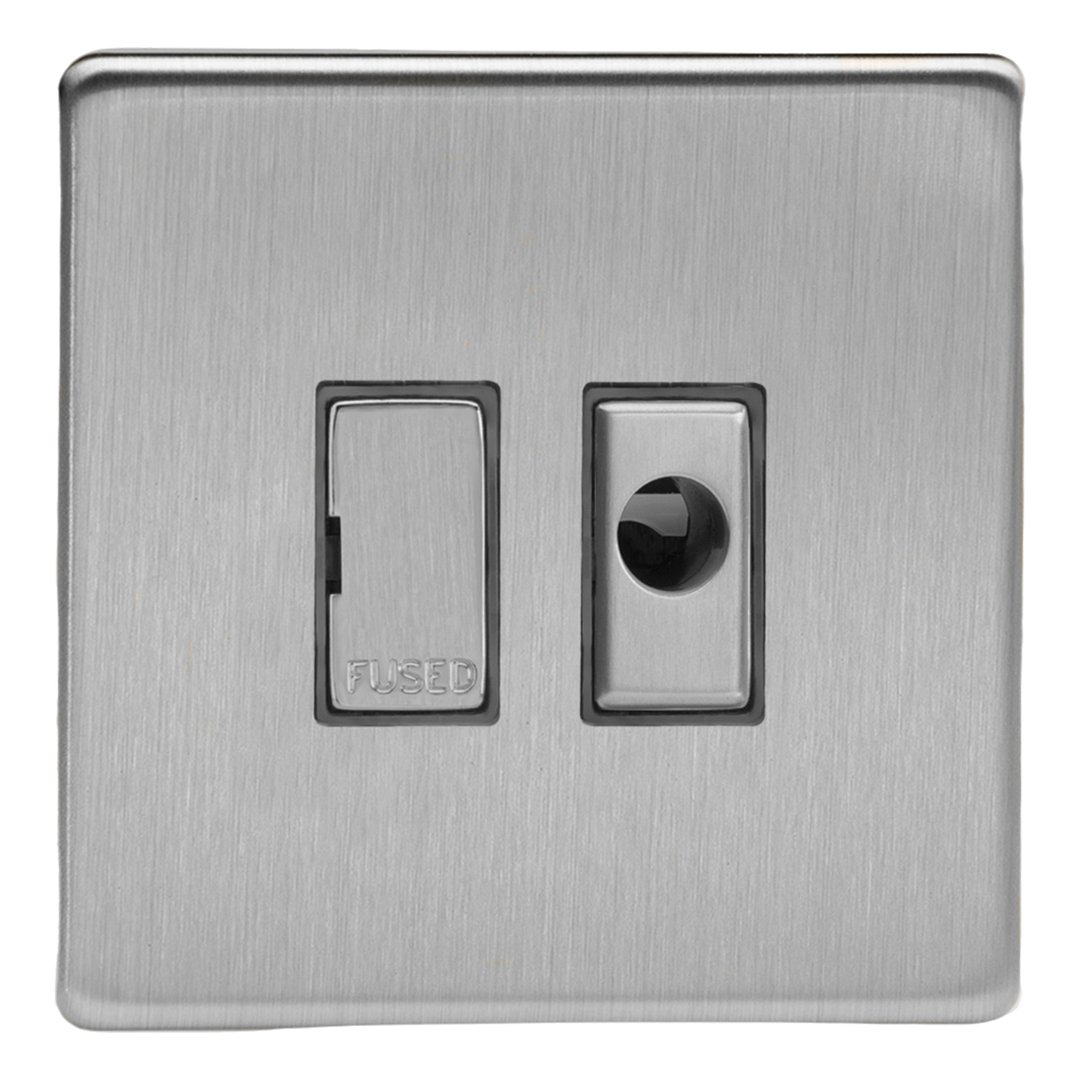

13A Unswitched Fused Spur + Flex Outlet

Range: Screwless

Finish: Brushed Steel

Product Category: Fused Spur Connection Units

Insert/Knob Colour: Steel Insert

Barcode: 5021575481662

Dimensions: 86x86x34mm

Faceplate Depth: 4mm

Weight: 178g

Fixing Centres: 60.3mm

Depth from Mounting Face: 22.7mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4 Declaration of Conformity

Commodity Code: 85389091
