Product Features:
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Sleek, low-profile screwless faceplate
Product Code: XDS6UDS
Description:

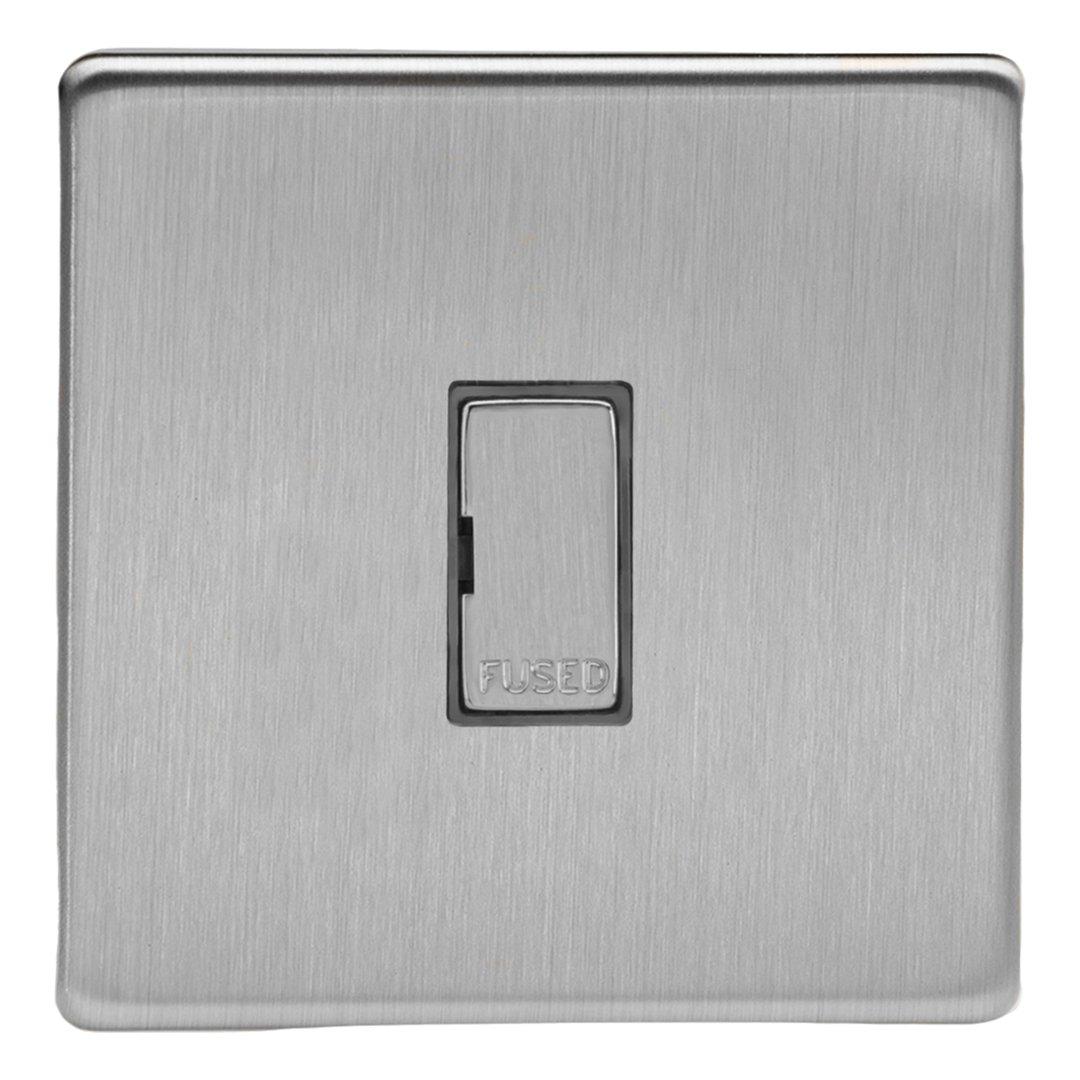

13A Unswitched Fused Spur
Range: Screwless
Finish: Brushed Steel
Product Category: Fused Spur Connection Units
Insert/Knob Colour: Steel Insert
Barcode: 5021575481655
Dimensions: 86x86x30mm
Faceplate Depth: 4mm
Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 22.7mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4 Declaration of Conformity
Commodity Code: 85389091
