Product Features:
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Sleek, low-profile screwless faceplate
For helpful tips on painting the Varilight Primed range, featuring different paints and methods, see our Varilight Primed - Best Practices article.
Product Code: JDYDP303VS.PD
Description:

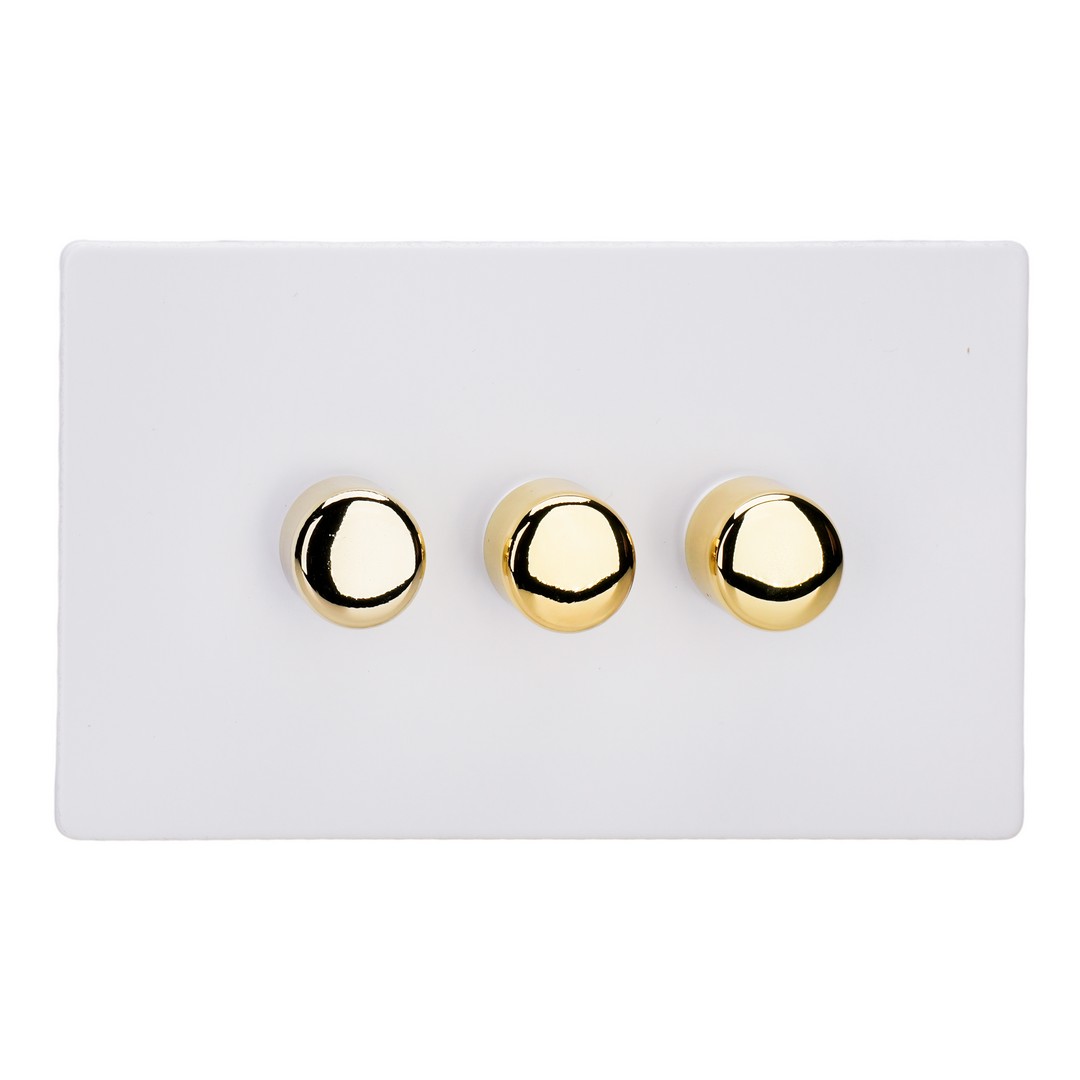

3-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 3 x 0-120W (Twin Plate)
Range: Screwless
Finish: Primed
Product Category: LED Dimmers
Insert/Knob Colour: Polished Brass Knob
Barcode: 5021575997958
Dimensions: 86x147x48mm
Faceplate Depth: 4mm
Weight: 362g
Fixing Centres: 120.6mm
Depth from Mounting Face:
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 120W
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1 Declaration of Conformity
Commodity Code: 85365005
