Product Features:
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Use with touch & remote master Multi-Point dimmers in multi-Way circuits
Sleek, low-profile screwless faceplate
Product Code: JDSES004S
Description:

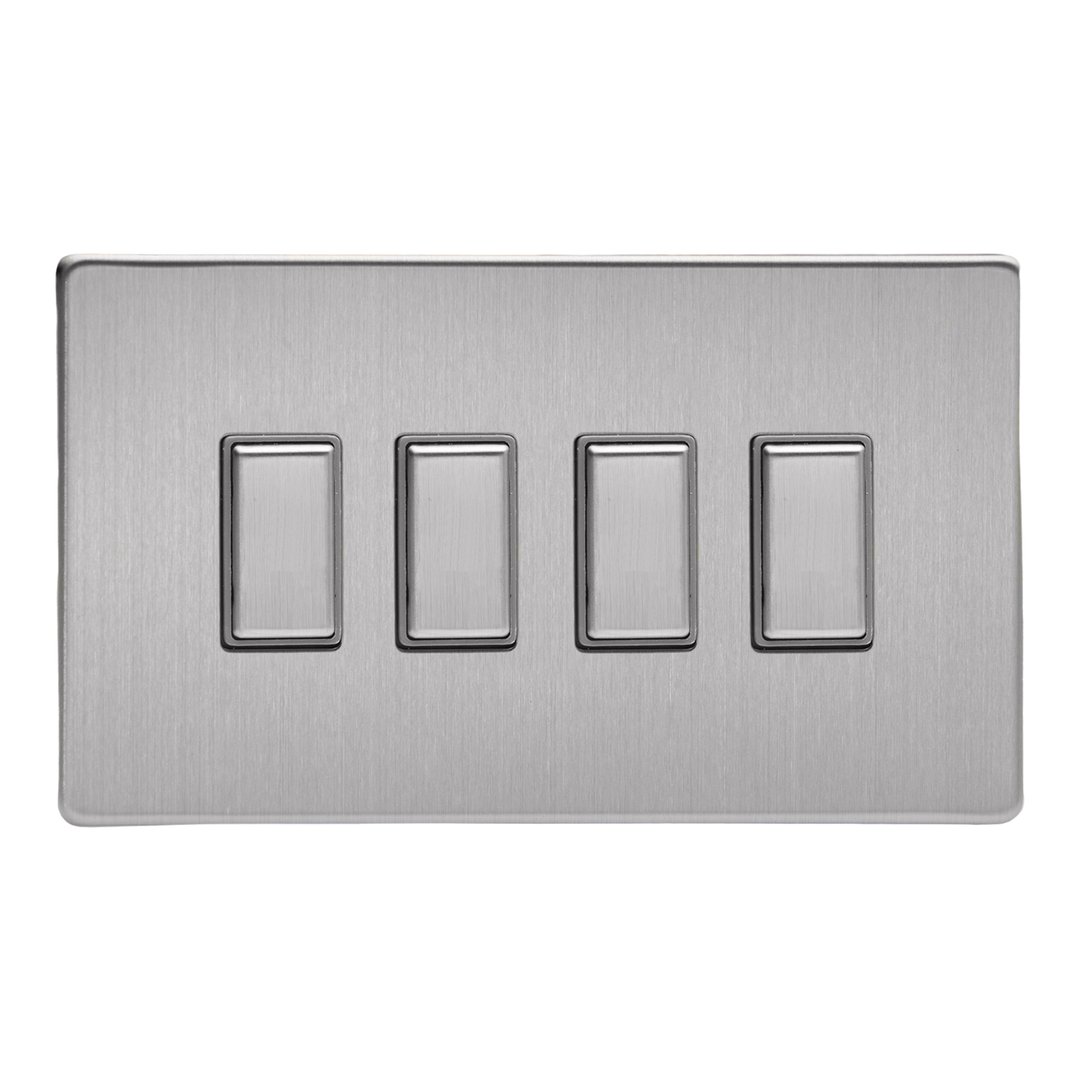

4-Gang Tactile Touch Control Dimming Companion Controller for use with Multi-Point Master on 2-Way Circuits (Twin Plate)
Range: Screwless
Finish: Brushed Steel
Product Category: LED Dimmers
Insert/Knob Colour: Steel Buttons
Barcode: 5021575162271
Dimensions: 86x147x27mm
Faceplate Depth: 4mm
Weight: 232g
Fixing Centres: 120.6mm
Depth from Mounting Face: 21.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Master Dimmer
Maximum Current Rating: Refer to Master Dimmer
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1 Declaration of Conformity
Commodity Code: 85365005
